Tuercas tensionadoras mecánicas, serie SJX
Descripción
Trabador compacto con pernos secundarios prisioneros.
Aplicaciones de fuerzas standard, pero con poco espacio en la parte superior, ó donde se enrosca la tuerca unas pocas vueltas.
Ficha Técnica
| Serie imperial | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||

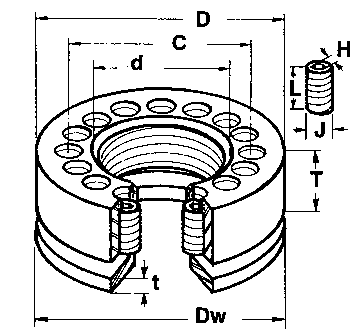

| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| SJX-075-.../w | 3/4 | 43.2 | 17.8 | 30.2 | 16.0 | 4 | 1/4 | 3/16 | 41.4 | 3.3 | 20,400.0 | 7.7 | 0.2 |
| SJX-087-.../w | 7/8 | 46.7 | 17.8 | 33.3 | 16.0 | 6 | 1/4 | 3/16 | 44.5 | 3.3 | 30,600.0 | 7.2 | 0.2 |
| SJX-100-?/w | 1 | 53.3 | 17.8 | 36.6 | 16.0 | 8 | 5/16 | 1/4 | 50.8 | 4.8 | 48,600.0 | 7.1 | 0.3 |
| SJX-112-?/w | 1.1/8 | 59.4 | 22.9 | 41.9 | 22.4 | 6 | 5/16 | 1/4 | 54.1 | 4.8 | 48,600.0 | 14.0 | 0.4 |
| SJX-125-?/w | 1.1/4 | 62.7 | 24.1 | 45.2 | 22.4 | 8 | 5/16 | 1/4 | 60.5 | 4.8 | 64,800.0 | 14.0 | 0.5 |
| SJX-137-?/w | 1.3/8 | 69.1 | 24.1 | 48.3 | 22.4 | 10 | 3/8 | 5/16 | 63.5 | 4.8 | 73,800.0 | 14.0 | 0.6 |
| SJX-150-?/w | 1.1/2 | 81.3 | 30.5 | 55.9 | 25.4 | 8 | 3/8 | 5/16 | 69.9 | 4.8 | 98,400.0 | 27.0 | 1.0 |
| SJX-162-?/w | 1.5/8 | 87.6 | 30.5 | 59.2 | 25.4 | 8 | 3/8 | 5/16 | 73.2 | 4.8 | 98,400.0 | 33.0 | 1.2 |
| SJX-175-?/w | 1.3/4 | 91.2 | 30.5 | 62.2 | 25.4 | 10 | 7/16 | 3/8 | 79.5 | 6.4 | 129,600.0 | 31.0 | 1.2 |
| SJX-187-?/w | 1.7/8 | 94.5 | 33.0 | 65.5 | 25.4 | 12 | 1/2 | 7/16 | 88.9 | 6.4 | 175,200.0 | 30.0 | 1.4 |
| SJX-200-.../w | 2 | 106.7 | 38.1 | 73.2 | 31.8 | 8 | 1/2 | 7/16 | 88.9 | 6.4 | 175,200.0 | 64.0 | 2.1 |
| SJX-225-.../w | 2.1/4 | 119.4 | 38.1 | 79.5 | 31.8 | 10 | 1/2 | 7/16 | 101.6 | 6.4 | 175,200.0 | 66.0 | 2.7 |
| SJX-250-.../w | 2.1/2 | 125.7 | 41.9 | 85.9 | 38.1 | 12 | 5/8 | 9/16 | 114.3 | 7.9 | 285,600.0 | 69.0 | 3.1 |
| SJX-275-.../w | 2.3/4 | 144.8 | 45.7 | 96.5 | 44.5 | 12 | 5/8 | 9/16 | 120.7 | 7.9 | 285,600.0 | 107.0 | 4.8 |
| SJX-300-.../w | 3 | 157.5 | 54.6 | 107.4 | 50.8 | 12 | 5/8 | 9/16 | 133.4 | 9.7 | 428,400.0 | 137.0 | 6.5 |
| SJX-325-.../w | 3.1/4 | 170.2 | 54.6 | 113.8 | 50.8 | 12 | 5/8 | 9/16 | 139.7 | 9.7 | 428,400.0 | 162.0 | 7.4 |
| SJX-350-.../w | 3.1/2 | 176.5 | 58.4 | 120.1 | 50.8 | 12 | 5/8 | 9/16 | 146.1 | 9.7 | 571,200.0 | 185.0 | 8.3 |
| SJX-375-.../w | 3.3/4 | 182.9 | 63.5 | 126.5 | 50.8 | 14 | 5/8 | 9/16 | 152.4 | 9.7 | 571,200.0 | 188.0 | 9.6 |
| SJX-400-.../w | 4 | 189.2 | 78.7 | 137.2 | 76.2 | 12 | 5/8 | 9/16 | 168.9 | 9.7 | 642,600.0 | 289.0 | 12.6 |
| SJX-425-.../w | 4.1/4 | 201.9 | 78.7 | 143.5 | 76.2 | 14 | 3/4 | 5/8 | 175.3 | 9.7 | 806,400.0 | 281.0 | 14.4 |
| SJX-450-.../w | 4.1/2 | 208.3 | 78.7 | 149.9 | 76.2 | 14 | 3/4 | 5/8 | 188.0 | 9.7 | 806,400.0 | 277.0 | 14.8 |
| SJX-475-.../w | 4.3/4 | 214.6 | 82.6 | 156.2 | 76.2 | 16 | 3/4 | 5/8 | 200.7 | 9.7 | 907,200.0 | 282.0 | 16.1 |
| SJX-500-.../w | 5 | 214.6 | 90.2 | 162.6 | 76.2 | 16 | 3/4 | 5/8 | 200.7 | 9.7 | 1,100,800.0 | 282.0 | 17.0 |
| SJX-525-.../w | 5.1/4 | 221.0 | 91.4 | 168.9 | 76.2 | 16 | 3/4 | 5/8 | 213.4 | 12.7 | 1,108,800.0 | 275.0 | 17.9 |
| SJX-550-.../w | 5.1/2 | 227.3 | 94.0 | 175.3 | 76.2 | 18 | 3/4 | 5/8 | 213.4 | 12.7 | 1,108,800.0 | 276.0 | 18.7 |
| SJX-575-.../w | 5.3/4 | 240.0 | 91.4 | 181.6 | 76.2 | 18 | 3/4 | 5/8 | 238.8 | 12.7 | 1,209,600.0 | 280.0 | 20.9 |
| SJX-600-.../w | 6 | 240.0 | 95.3 | 188.0 | 76.2 | 18 | 3/4 | 5/8 | 238.8 | 12.7 | 1,209,600.0 | 279.0 | 20.5 |
| Serie milimétrica | |||||||||||||
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||
| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | mm | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| SJX-M20-.../w | M20 | 43.0 | 18.0 | 31.0 | 16.0 | 4 | 8.0 | 4.0 | 41.0 | 3.3 | 20,160.0 | 8.8 | 0.2 |
| SJX-M24-.../w | M24 | 50.0 | 18.0 | 35.0 | 16.0 | 6 | 8.0 | 4.0 | 48.0 | 4.8 | 29,100.0 | 8.4 | 0.2 |
| SJX-M27-.../w | M27 | 56.0 | 18.0 | 38.0 | 16.0 | 8 | 8.0 | 4.0 | 51.0 | 4.8 | 38,280.0 | 8.3 | 0.3 |
| SJX-M30-.../w | M30 | 63.0 | 23.0 | 44.0 | 20.0 | 8 | 10.0 | 5.0 | 57.0 | 4.8 | 46,800.0 | 14.0 | 0.5 |
| SJX-M33-.../w | M33 | 69.0 | 23.0 | 47.0 | 20.0 | 10 | 10.0 | 5.0 | 60.0 | 4.8 | 58,440.0 | 14.0 | 0.6 |
| SJX-M36-.../w | M36 | 75.0 | 30.0 | 53.0 | 25.0 | 8 | 12.0 | 6.0 | 67.0 | 4.8 | 68,640.0 | 25.0 | 0.9 |
| SJX-M39-.../w | M39 | 81.0 | 30.0 | 56.0 | 25.0 | 10 | 12.0 | 6.0 | 70.0 | 4.8 | 82,680.0 | 24.0 | 1.0 |
| SJX-M42-.../w | M42 | 88.0 | 30.0 | 59.0 | 25.0 | 10 | 12.0 | 6.0 | 73.0 | 4.8 | 94,080.0 | 27.0 | 1.2 |
| SJX-M45-.../w | M45 | 91.0 | 30.0 | 62.0 | 25.0 | 12 | 12.0 | 6.0 | 80.0 | 6.4 | 111,120.0 | 27.0 | 1.3 |
| SJX-M48-.../w | M48 | 100.0 | 38.0 | 70.0 | 35.0 | 8 | 16.0 | 8.0 | 89.0 | 6.4 | 124,920.0 | 56.0 | 1.9 |
| SJX-M52-.../w | M52 | 107.0 | 38.0 | 74.0 | 35.0 | 10 | 16.0 | 8.0 | 95.0 | 6.4 | 150,180.0 | 54.0 | 2.1 |
| SJX-M56-.../w | M56 | 113.0 | 38.0 | 78.0 | 35.0 | 10 | 16.0 | 8.0 | 95.0 | 6.4 | 173,220.0 | 62.0 | 2.4 |
| SJX-M60-.../w | M60 | 119.0 | 42.0 | 82.0 | 40.0 | 10 | 16.0 | 8.0 | 108.0 | 6.4 | 197,520.0 | 71.0 | 2.9 |
| SJX-M64-.../w | M64 | 126.0 | 42.0 | 86.0 | 40.0 | 12 | 16.0 | 8.0 | 114.0 | 8.0 | 229,440.0 | 69.0 | 3.2 |
| SJX-M72-.../w | M72 | 151.0 | 46.0 | 100.0 | 45.0 | 12 | 20.0 | 10.0 | 121.0 | 8.0 | 299,640.0 | 114.0 | 5.2 |
| SJX-M80-?/w | M80 | 157.0 | 52.0 | 108.0 | 45.0 | 12 | 20.0 | 10.0 | 133.0 | 10.0 | 379,140.0 | 144.0 | 6.1 |
| SJX-M90-.../w | M90 | 177.0 | 64.0 | 124.0 | 60.0 | 12 | 24.0 | 12.0 | 152.0 | 10.0 | 491,700.0 | 220.0 | 9.6 |
| SJX-M100-?/w | M100 | 183.0 | 76.0 | 134.0 | 60.0 | 14 | 24.0 | 12.0 | 163.0 | 10.0 | 618,600.0 | 238.0 | 11.3 |
| SJX-M110-?/w | M110 | 202.0 | 79.0 | 144.0 | 60.0 | 16 | 24.0 | 12.0 | 175.0 | 10.0 | 741,195.0 | 249.0 | 14.4 |
| SJX-M120-?/w | M120 | 208.0 | 79.0 | 154.0 | 60.0 | 16 | 24.0 | 12.0 | 188.0 | 10.0 | 744,413.0 | 250.0 | 14.8 |
| SJX-M140-?/w | M140 | 221.0 | 91.0 | 174.0 | 60.0 | 18 | 24.0 | 12.0 | 213.0 | 13.0 | 833,490.0 | 249.0 | 17.9 |
| SJX-M160-?/w | M160 | 240.0 | 95.0 | 194.0 | 60.0 | 20 | 24.0 | 12.0 | 239.0 | 13.0 | 932,190.0 | 251.0 | 20.5 |
