Tuercas tensionadoras mecánicas, serie MTSX
Descripción
Tuerca de muy alta resistencia con pernos secundarios hexagonales y lubricante Moly.
Aplicación: Para torques bajos en pernos grandes y espárragos con tensiones elevadas.
Ficha Técnica
| Serie imperial | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

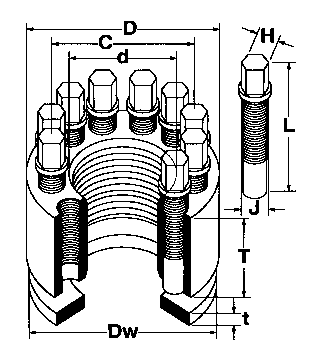

| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||
| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| MTSX-425-.../w | 4.1/4 | 189.2 | 83.8 | 147.3 | 118.9 | 20 | 3/4 | 5/8 | 175.3 | 9.7 | 806,400.0 | 189.0 | 12.6 |
| MTSX-450-.../w | 4.1/2 | 201.9 | 91.4 | 153.7 | 126.5 | 18 | 3/4 | 5/8 | 188.0 | 9.7 | 806,400.0 | 288.0 | 15.7 |
| MTSX-475-.../w | 4.3/4 | 208.3 | 101.6 | 170.7 | 136.7 | 20 | 3/4 | 5/8 | 200.7 | 9.7 | 907,200.0 | 288.0 | 18.3 |
| MTSX-500-.../w | 5 | 214.6 | 101.6 | 170.5 | 136.7 | 20 | 3/4 | 5/8 | 200.7 | 9.7 | 1,100,800.0 | 288.0 | 19.2 |
| MTSX-525-.../w | 5.1/4 | 227.3 | 106.7 | 175.5 | 144.8 | 18 | 3/4 | 5/8 | 213.4 | 12.7 | 1,108,800.0 | 435.0 | 22.7 |
| MTSX-550-.../w | 5.1/2 | 240.0 | 106.7 | 181.9 | 144.8 | 20 | 3/4 | 5/8 | 213.4 | 9.7 | 1,108,800.0 | 435.0 | 25.3 |
| MTSX-575-.../w | 5.3/4 | 252.7 | 127.0 | 197.4 | 168.4 | 18 | 3/4 | 5/8 | 238.8 | 9.7 | 1,209,600.0 | 623.0 | 33.5 |
| MTSX-600-.../w | 6 | 252.7 | 127.0 | 197.6 | 168.4 | 18 | 3/4 | 5/8 | 238.8 | 9.7 | 1,209,600.0 | 623.0 | 32.2 |
| Serie milimétrica | |||||||||||||
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||
| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| Denominación | Rosca | OD | T | C | L | Cantidad | Rosca | Hex | Dw | t | |||
| MTSX-M110-?/w | M110 | 189.0 | 76.0 | 139.0 | 108.0 | 18 | 20.0 | 17.0 | 175.0 | 10.0 | 1,064,880.0 | 189.0 | 11.8 |
| MTSX-M120-?/w | M120 | 202.0 | 91.0 | 154.0 | 123.0 | 20 | 20.0 | 17.0 | 188.0 | 10.0 | 1,183,200.0 | 230.0 | 15.7 |
| MTSX-M140-?/w | M140 | 240.0 | 107.0 | 185.0 | 143.0 | 24 | 24.0 | 19.0 | 213.0 | 13.0 | 1,638,000.0 | 390.0 | 26.1 |
| MTSX-M160-?/w | M160 | 264.0 | 127.0 | 207.0 | 166.0 | 27 | 27.0 | 19.0 | 239.0 | 13.0 | 2,136,000.0 | 563.0 | 36.6 |
