Tuercas tensionadoras mecánicas, serie H650X
Descripción
Tuerca con lubricante Moly, para aplicaciones de temperaturas medianas.
Aplicación: Para pernos o espárragos expuestos a mediana temperatura. Diseñados para tensiones de 45,000 psi, tiene menos pernos secundarios para un rápido montaje.
Ficha Técnica
| Serie imperial | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||

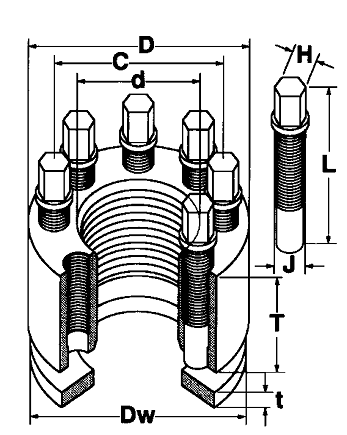

| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| H650X-125-?/w | 1.1/4 | 59.4 | 27.9 | 46.0 | 49.0 | 6 | 5/16 | 1/4 | 60.5 | 4.8 | 64,800.0 | 27.0 | 0.4 |
| H650X-137-?/w | 1.3/8 | 65.8 | 36.1 | 51.3 | 56.9 | 6 | 3/8 | 5/16 | 63.5 | 6.4 | 73,800.0 | 49.0 | 0.7 |
| H650X-150-?/w | 1.1/2 | 73.7 | 36.1 | 56.5 | 59.7 | 6 | 3/8 | 5/16 | 73.2 | 6.4 | 98,400.0 | 49.0 | 0.9 |
| H650X-162-?/w | 1.5/8 | 77.5 | 40.6 | 60.5 | 66.0 | 6 | 3/8 | 5/16 | 76.2 | 6.4 | 98,400.0 | 49.0 | 1.0 |
| H650X-175-?/w | 1.3/4 | 84.8 | 41.9 | 65.7 | 66.0 | 6 | 7/16 | 3/8 | 85.9 | 6.4 | 129,600.0 | 75.0 | 1.3 |
| H650X-187-?/w | 1.7/8 | 94.0 | 45.7 | 74.0 | 74.9 | 6 | 1/2 | 7/16 | 98.6 | 7.9 | 175,200.0 | 114.0 | 1.8 |
| H650X-200-.../w | 2 | 99.1 | 45.7 | 74.0 | 74.9 | 6 | 1/2 | 7/16 | 98.6 | 7.9 | 175,200.0 | 114.0 | 2.0 |
| H650X-225-.../w | 2.1/4 | 105.4 | 45.7 | 78.9 | 74.9 | 6 | 1/2 | 7/16 | 101.6 | 7.9 | 175,200.0 | 114.0 | 2.2 |
| H650X-250-.../w | 2.1/2 | 115.6 | 59.7 | 92.0 | 92.2 | 6 | 5/8 | 9/16 | 117.6 | 9.7 | 285,600.0 | 233.0 | 3.4 |
| H650X-275-.../w | 2.3/4 | 125.0 | 59.7 | 97.0 | 92.2 | 6 | 5/8 | 9/16 | 124.0 | 9.7 | 285,600.0 | 233.0 | 3.9 |
| H650X-300-.../w | 3 | 134.6 | 59.7 | 103.6 | 92.2 | 8 | 5/8 | 9/16 | 130.3 | 9.7 | 428,400.0 | 233.0 | 4.4 |
| H650X-325-.../w | 3.1/4 | 134.6 | 76.2 | 110.0 | 111.3 | 8 | 5/8 | 9/16 | 137.2 | 9.7 | 428,400.0 | 233.0 | 5.2 |
| H650X-350-.../w | 3.1/2 | 149.9 | 76.2 | 116.3 | 111.3 | 10 | 5/8 | 9/16 | 143.5 | 9.7 | 571,200.0 | 233.0 | 6.5 |
| H650X-375-.../w | 3.3/4 | 156.2 | 76.2 | 122.7 | 111.3 | 12 | 5/8 | 9/16 | 149.9 | 9.7 | 571,200.0 | 233.0 | 7.0 |
| H650X-400-.../w | 4 | 170.2 | 76.2 | 129.0 | 111.3 | 12 | 5/8 | 9/16 | 156.2 | 9.7 | 642,600.0 | 233.0 | 8.7 |
| Serie milimétrica | |||||||||||||
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||
| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | mm | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| H650X-M30-.../w | M30 | 59.0 | 28.0 | 46.0 | 47.0 | 6 | 10.0 | 8.0 | 60.0 | 4.8 | 35,100.0 | 12.0 | 0.4 |
| H650X-M33-.../w | M33 | 66.0 | 28.0 | 51.0 | 47.0 | 6 | 10.0 | 8.0 | 64.0 | 4.8 | 43,830.0 | 15.0 | 0.6 |
| H650X-M36-.../w | M36 | 74.0 | 36.0 | 57.0 | 58.0 | 6 | 12.0 | 10.0 | 73.0 | 6.4 | 51,480.0 | 21.0 | 0.9 |
| H650X-M39-.../w | M39 | 74.0 | 36.0 | 57.0 | 58.0 | 6 | 12.0 | 10.0 | 73.0 | 6.4 | 62,010.0 | 26.0 | 0.9 |
| H650X-M42-.../w | M42 | 77.0 | 41.0 | 61.0 | 62.0 | 6 | 12.0 | 10.0 | 76.0 | 6.4 | 70,560.0 | 29.0 | 1.0 |
| H650X-M45-.../w | M45 | 94.0 | 46.0 | 74.0 | 75.0 | 6 | 16.0 | 14.0 | 99.0 | 8.0 | 83,340.0 | 45.0 | 1.9 |
| H650X-M48-.../w | M48 | 94.0 | 46.0 | 74.0 | 75.0 | 6 | 16.0 | 14.0 | 99.0 | 8.0 | 93,690.0 | 51.0 | 1.8 |
| H650X-M52-.../w | M52 | 99.0 | 46.0 | 74.0 | 75.0 | 6 | 16.0 | 14.0 | 99.0 | 8.0 | 112,635.0 | 61.0 | 2.0 |
| H650X-M56-.../w | M56 | 105.0 | 46.0 | 79.0 | 75.0 | 6 | 16.0 | 14.0 | 102.0 | 8.0 | 129,915.0 | 70.0 | 2.2 |
| H650X-M60-.../w | M60 | 116.0 | 60.0 | 92.0 | 89.0 | 6 | 20.0 | 17.0 | 118.0 | 10.0 | 148,140.0 | 112.0 | 3.5 |
| H650X-M64-.../w | M64 | 116.0 | 60.0 | 92.0 | 89.0 | 6 | 20.0 | 17.0 | 118.0 | 10.0 | 172,080.0 | 131.0 | 3.4 |
| H650X-M72-.../w | M72 | 131.0 | 60.0 | 104.0 | 89.0 | 8 | 20.0 | 17.0 | 130.0 | 10.0 | 224,730.0 | 128.0 | 4.3 |
| H650X-M80-?/w | M80 | 135.0 | 76.0 | 109.0 | 108.0 | 6 | 20.0 | 17.0 | 137.0 | 10.0 | 284,355.0 | 184.0 | 5.4 |
| H650X-M90-.../w | M90 | 150.0 | 76.0 | 119.0 | 108.0 | 8 | 20.0 | 17.0 | 150.0 | 10.0 | 368,775.0 | 179.0 | 6.5 |
| H650X-M100-?/w | M100 | 170.0 | 76.0 | 129.0 | 108.0 | 10 | 20.0 | 17.0 | 156.0 | 10.0 | 463,950.0 | 148.0 | 8.7 |
