Tuercas tensionadoras mecánicas, serie H1200T
Descripción
Tuerca de acero inoxidable para espacios reducidos.
Para aplicaciones alimentarias, corrosivas, no magnéticas y temperaturas extremas, y con espacios reducidos
Ficha Técnica
| Serie imperial | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||

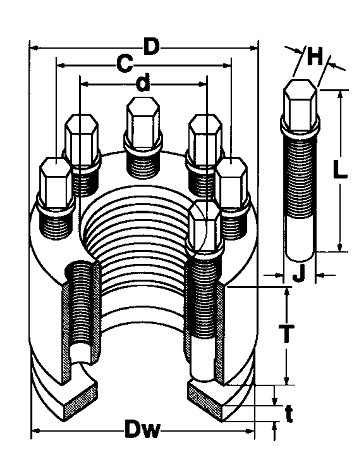

| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| H1200T-100-?/w | 1 | 42.7 | 24.1 | 34.0 | 38.1 | 8 | 1/4 | 3/16 | 42.7 | 3.2 | 48,600.0 | 27.0 | 0.2 |
| H1200T-112-?/w | 1.1/8 | 46.0 | 26.7 | 37.2 | 41.9 | 10 | 1/4 | 3/16 | 45.7 | 3.2 | 48,600.0 | 27.0 | 0.3 |
| H1200T-125-?/w | 1.1/4 | 49.5 | 29.2 | 40.3 | 41.9 | 12 | 1/4 | 3/16 | 49.0 | 3.2 | 64,800.0 | 27.0 | 0.3 |
| H1200T-137-?/w | 1.3/8 | 52.8 | 32.3 | 43.5 | 45.7 | 14 | 1/4 | 3/16 | 52.1 | 3.2 | 73,800.0 | 49.0 | 0.3 |
| H1200T-150-?/w | 1.1/2 | 60.7 | 35.3 | 48.8 | 53.3 | 12 | 5/16 | 1/4 | 59.4 | 3.2 | 98,400.0 | 49.0 | 0.5 |
| H1200T-162-?/w | 1.5/8 | 64.3 | 37.8 | 52.0 | 53.3 | 14 | 5/16 | 1/4 | 62.7 | 3.2 | 98,400.0 | 49.0 | 0.7 |
| H1200T-175-?/w | 1.3/4 | 67.6 | 41.1 | 55.2 | 58.4 | 16 | 5/16 | 1/4 | 65.8 | 3.2 | 129,600.0 | 75.0 | 0.7 |
| H1200T-187-?/w | 1.7/8 | 70.9 | 43.7 | 58.3 | 58.4 | 16 | 5/16 | 1/4 | 69.1 | 3.2 | 175,200.0 | 114.0 | 0.8 |
| H1200T-200-.../w | 2 | 79.5 | 48.3 | 64.3 | 66.0 | 12 | M10 | 5/16 | 77.7 | 3.2 | 175,200.0 | 114.0 | 1.2 |
| H1200T-225-.../w | 2.1/4 | 86.6 | 52.8 | 70.6 | 72.4 | 16 | M10 | 5/16 | 84.1 | 3.2 | 175,200.0 | 114.0 | 1.5 |
| H1200T-250-.../w | 2.1/2 | 96.5 | 58.7 | 78.5 | 80.0 | 16 | 7/16 | 11/32 | 93.5 | 3.2 | 285,600.0 | 233.0 | 2.0 |
| H1200T-275-.../w | 2.3/4 | 108.2 | 64.8 | 87.0 | 88.9 | 14 | 1/2 | 3/8 | 104.4 | 3.2 | 285,600.0 | 233.0 | 3.0 |
| H1200T-300-.../w | 3 | 114.6 | 70.6 | 93.3 | 95.3 | 16 | 1/2 | 3/8 | 110.5 | 3.2 | 428,400.0 | 233.0 | 3.5 |
| H1200T-325-.../w | 3.1/4 | 121.2 | 76.2 | 99.7 | 99.1 | 20 | 1/2 | 3/8 | 116.8 | 3.2 | 428,400.0 | 233.0 | 3.9 |
| H1200T-350-.../w | 3.1/2 | 137.9 | 82.6 | 110.3 | 110.5 | 14 | 5/8 | 1/2 | 131.8 | 3.2 | 571,200.0 | 233.0 | 6.1 |
| H1200T-375-.../w | 3.3/4 | 144.5 | 87.9 | 116.7 | 115.6 | 18 | 5/8 | 1/2 | 138.2 | 3.2 | 571,200.0 | 233.0 | 6.5 |
| H1200T-400-.../w | 4 | 150.9 | 93.7 | 123.0 | 120.7 | 20 | 5/8 | 1/2 | 144.5 | 3.2 | 642,600.0 | 233.0 | 7.4 |
| H1200T-425-.../w | 4.1/4 | 162.6 | 100.1 | 133.7 | 132.1 | 14 | 3/4 | 5/8 | 159.5 | 4.8 | 175,200.0 | 114.0 | 9.6 |
| H1200T-450-.../w | 4.1/2 | 169.2 | 105.4 | 140.0 | 142.2 | 16 | 3/4 | 5/8 | 165.9 | 4.8 | 285,600.0 | 233.0 | 10.5 |
| H1200T-475-.../w | 4.3/4 | 180.3 | 111.8 | 146.4 | 142.2 | 18 | 3/4 | 5/8 | 172.2 | 4.8 | 285,600.0 | 233.0 | 12.6 |
| H1200T-500-.../w | 5 | 188.0 | 117.6 | 152.7 | 149.9 | 20 | 3/4 | 5/8 | 178.6 | 4.8 | 428,400.0 | 233.0 | 14.8 |
| H1200T-525-.../w | 5.1/4 | 200.7 | 124.0 | 160.8 | 154.9 | 22 | 3/4 | 5/8 | 186.4 | 4.8 | 428,400.0 | 233.0 | 17.9 |
| H1200T-550-.../w | 5.1/2 | 207.0 | 130.3 | 175.1 | 162.6 | 24 | 3/4 | 5/8 | 200.9 | 4.8 | 571,200.0 | 233.0 | 19.2 |
| H1200T-575-.../w | 5.3/4 | 219.7 | 136.7 | 189.7 | 170.2 | 26 | 3/4 | 5/8 | 215.4 | 4.8 | 571,200.0 | 233.0 | 23.1 |
| H1200T-600-.../w | 6 | 233.7 | 143.0 | 204.2 | 175.3 | 28 | 3/4 | 5/8 | 229.9 | 4.8 | 642,600.0 | 233.0 | 28.3 |
| Serie milimétrica | |||||||||||||
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||
| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | mm | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| H1200T-M24-.../w | M24 | 41.0 | 23.0 | 33.0 | 38.0 | 6 | 1/4 | 5.0 | 41.0 | 3.2 | 21,825.0 | 10.0 | 0.2 |
| H1200T-M27-.../w | M27 | 44.0 | 25.0 | 36.0 | 38.0 | 8 | 1/4 | 5.0 | 43.0 | 3.2 | 28,800.0 | 10.0 | 0.2 |
| H1200T-M30-.../w | M30 | 47.0 | 28.0 | 39.0 | 42.0 | 10 | 1/4 | 5.0 | 47.0 | 3.2 | 35,100.0 | 10.0 | 0.3 |
| H1200T-M33-.../w | M33 | 51.0 | 30.0 | 42.0 | 46.0 | 12 | 1/4 | 5.0 | 49.0 | 3.2 | 43,650.0 | 10.0 | 0.3 |
| H1200T-M36-.../w | M36 | 53.0 | 33.0 | 45.0 | 46.0 | 14 | 1/4 | 5.0 | 53.0 | 3.2 | 51,480.0 | 10.0 | 0.4 |
| H1200T-M39-.../w | M39 | 62.0 | 35.0 | 50.0 | 53.0 | 12 | 5/16 | 6.0 | 59.0 | 3.2 | 62,010.0 | 18.0 | 0.6 |
| H1200T-M42-.../w | M42 | 64.0 | 39.0 | 53.0 | 53.0 | 12 | 5/16 | 6.0 | 64.0 | 3.2 | 70,560.0 | 20.0 | 0.7 |
| H1200T-M45-.../w | M45 | 68.0 | 41.0 | 56.0 | 58.0 | 14 | 5/16 | 6.0 | 66.0 | 3.2 | 83,340.0 | 19.0 | 0.8 |
| H1200T-M48-.../w | M48 | 70.0 | 44.0 | 59.0 | 58.0 | 16 | 5/16 | 6.0 | 69.0 | 3.2 | 93,690.0 | 20.0 | 0.9 |
| H1200T-M52-.../w | M52 | 81.0 | 47.0 | 66.0 | 66.0 | 12 | 3/8 | 8.0 | 78.0 | 3.2 | 112,635.0 | 39.0 | 1.3 |
| H1200T-M56-.../w | M56 | 84.0 | 52.0 | 70.0 | 72.0 | 14 | 3/8 | 8.0 | 83.0 | 3.2 | 129,915.0 | 38.0 | 1.5 |
| H1200T-M60-.../w | M60 | 88.0 | 55.0 | 74.0 | 72.0 | 16 | 3/8 | 8.0 | 87.0 | 3.2 | 148,140.0 | 38.0 | 1.7 |
| H1200T-M64-.../w | M64 | 96.0 | 59.0 | 79.0 | 80.0 | 14 | 7/16 | 9.0 | 94.0 | 3.2 | 172,080.0 | 56.0 | 2.1 |
| H1200T-M72-.../w | M72 | 109.0 | 67.0 | 89.0 | 89.0 | 14 | 1/2 | 10.0 | 106.0 | 3.2 | 224,730.0 | 82.0 | 3.1 |
| H1200T-M80-?/w | M80 | 117.0 | 74.0 | 97.0 | 95.0 | 16 | 1/2 | 10.0 | 114.0 | 3.2 | 284,355.0 | 91.0 | 3.8 |
| H1200T-M90-.../w | M90 | 137.0 | 83.0 | 111.0 | 110.0 | 14 | 5/8 | 13.0 | 133.0 | 3.2 | 368,775.0 | 170.0 | 6.1 |
| H1200T-M100-?/w | M100 | 148.0 | 92.0 | 121.0 | 121.0 | 18 | 5/8 | 13.0 | 143.0 | 3.2 | 463,950.0 | 166.0 | 7.4 |
| H1200T-M110-?/w | M110 | 166.0 | 102.0 | 131.0 | 132.0 | 14 | 3/4 | 16.0 | 162.0 | 4.8 | 570,150.0 | 315.0 | 10.5 |
| H1200T-M120-?/w | M120 | 180.0 | 111.0 | 146.0 | 142.0 | 16 | 3/4 | 16.0 | 172.0 | 4.8 | 687,150.0 | 332.0 | 13.5 |
| H1200T-M140-?/w | M140 | 207.0 | 131.0 | 166.0 | 163.0 | 24 | 3/4 | 16.0 | 201.0 | 4.8 | 926,100.0 | 299.0 | 20.5 |
| H1200T-M160-?/w | M160 | 234.0 | 156.0 | 186.0 | 188.0 | 28 | 3/4 | 16.0 | 230.0 | 4.8 | 1,215,900.0 | 336.0 | 30.5 |
