Tuercas tensionadoras mecánicas, serie H1050
Descripción
Tuerca para aplicaciones de temperaturas altas y espacios estándard.
Para aplicaciones expuestas a temperatura elevadas, donde no hay restricciones de espacio, ya que ocupan el mismo espacio que una tuerca pesada.
Ficha Técnica
| Serie imperial | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||

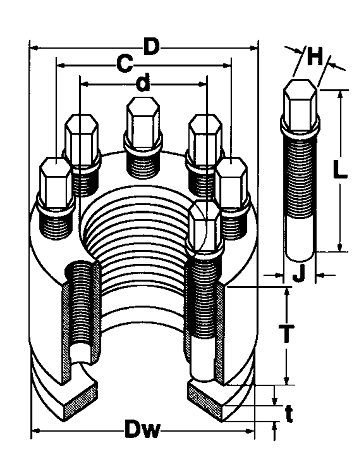

| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| H1050-062-.../w | 5/8 | 35.1 | 15.2 | 25.1 | 29.2 | 4 | 1/4 | 3/16 | 34.3 | - | 20,400.0 | 14.0 | 0.1 |
| H1050-075-.../w | 3/4 | 38.1 | 15.2 | 28.7 | 29.2 | 4 | 1/4 | 3/16 | 37.3 | - | 20,400.0 | 14.0 | 0.1 |
| H1050-087-.../w | 7/8 | 43.7 | 15.2 | 32.0 | 29.2 | 6 | 1/4 | 3/16 | 40.6 | - | 30,600.0 | 14.0 | 0.1 |
| H1050-100-?/w | 1 | 48.3 | 21.6 | 36.8 | 37.8 | 6 | 5/16 | 1/4 | 48.3 | - | 48,600.0 | 27.0 | 0.3 |
| H1050-112-?/w | 1.1/8 | 53.1 | 21.6 | 40.4 | 37.8 | 6 | 5/16 | 1/4 | 51.6 | - | 48,600.0 | 27.0 | 0.3 |
| H1050-125-?/w | 1.1/4 | 61.0 | 29.2 | 46.0 | 48.5 | 6 | M10 | 5/16 | 59.2 | - | 64,800.0 | 27.0 | 0.5 |
| H1050-137-?/w | 1.3/8 | 67.3 | 29.2 | 51.3 | 48.5 | 6 | M10 | 5/16 | 63.5 | - | 73,800.0 | 49.0 | 0.7 |
| H1050-150-?/w | 1.1/2 | 73.7 | 29.2 | 56.6 | 48.5 | 6 | M10 | 5/16 | 69.3 | - | 98,400.0 | 49.0 | 0.7 |
| H1050-162-?/w | 1.5/8 | 81.3 | 34.3 | 59.7 | 55.4 | 6 | 7/16 | 11/32 | 74.9 | - | 98,400.0 | 49.0 | 1.1 |
| H1050-175-?/w | 1.3/4 | 87.6 | 34.3 | 65.8 | 57.9 | 6 | 1/2 | 3/8 | 82.0 | - | 129,600.0 | 75.0 | 1.3 |
| H1050-187-?/w | 1.7/8 | 94.0 | 34.3 | 65.8 | 57.9 | 6 | 1/2 | 3/8 | 82.0 | - | 175,200.0 | 114.0 | 1.4 |
| H1050-200-.../w | 2 | 124.5 | 43.2 | 73.9 | 71.4 | 6 | 5/8 | 1/2 | 94.5 | - | 175,200.0 | 114.0 | 2.0 |
| H1050-225-.../w | 2.1/4 | 106.7 | 55.9 | 79.0 | 84.1 | 6 | 5/8 | 1/2 | 99.6 | - | 175,200.0 | 114.0 | 2.9 |
| H1050-250-.../w | 2.1/2 | 113.0 | 55.9 | 87.1 | 84.1 | 8 | 5/8 | 1/2 | 107.2 | - | 285,600.0 | 233.0 | 3.1 |
| H1050-275-.../w | 2.3/4 | 119.4 | 61.0 | 93.7 | 89.2 | 8 | 5/8 | 1/2 | 113.3 | - | 285,600.0 | 233.0 | 3.5 |
| H1050-300-.../w | 3 | 132.1 | 61.0 | 100.3 | 89.2 | 10 | 5/8 | 1/2 | 119.9 | - | 428,400.0 | 233.0 | 4.4 |
| H1050-325-.../w | 3.1/4 | 138.4 | 61.0 | 105.4 | 89.2 | 12 | 5/8 | 1/2 | 126.0 | - | 428,400.0 | 233.0 | 4.8 |
| H1050-350-.../w | 3.1/2 | 144.8 | 71.1 | 111.8 | 99.3 | 14 | 5/8 | 1/2 | 132.1 | - | 571,200.0 | 233.0 | 6.1 |
| H1050-375-.../w | 3.3/4 | 151.1 | 71.1 | 118.1 | 99.3 | 16 | 5/8 | 1/2 | 138.7 | - | 571,200.0 | 233.0 | 6.1 |
| H1050-400-.../w | 4 | 163.8 | 71.1 | 124.5 | 99.3 | 18 | 5/8 | 1/2 | 145.0 | - | 642,600.0 | 233.0 | 7.4 |
| Serie milimétrica | |||||||||||||
| Denominación | Rosca | Tuerca | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||
| d | D | T | C | L | Cant. | J | H | Dw | t | ||||
| - | mm | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| H1050-M20-.../w | M20 | 39.0 | 15.0 | 29.0 | 29.0 | 4 | 1/4 | 3/16 | 38.0 | - | 15,120.0 | 10.0 | 0.1 |
| H1050-M24-.../w | M24 | 48.0 | 22.0 | 37.0 | 38.0 | 6 | 5/16 | 1/4 | 48.0 | - | 21,825.0 | 12.0 | 0.3 |
| H1050-M27-.../w | M27 | 53.0 | 22.0 | 40.0 | 38.0 | 6 | 5/16 | 1/4 | 52.0 | - | 28,800.0 | 16.0 | 0.3 |
| H1050-M30-.../w | M30 | 59.0 | 22.0 | 46.0 | 38.0 | 6 | 5/16 | 1/4 | 56.0 | - | 35,100.0 | 20.0 | 0.4 |
| H1050-M33-.../w | M33 | 65.0 | 29.0 | 51.0 | 49.0 | 6 | M10 | 5/16 | 64.0 | - | 43,650.0 | 30.0 | 0.6 |
| H1050-M36-.../w | M36 | 70.0 | 29.0 | 57.0 | 49.0 | 6 | M10 | 5/16 | 69.0 | - | 51,480.0 | 35.0 | 0.7 |
| H1050-M39-.../w | M39 | 74.0 | 29.0 | 57.0 | 49.0 | 6 | M10 | 5/16 | 69.0 | - | 62,010.0 | 43.0 | 0.7 |
| H1050-M42-.../w | M42 | 81.0 | 34.0 | 61.0 | 55.0 | 6 | 7/16 | 11/32 | 75.0 | - | 70,560.0 | 54.0 | 1.1 |
| H1050-M45-.../w | M45 | 88.0 | 34.0 | 66.0 | 58.0 | 6 | 1/2 | 3/8 | 82.0 | - | 83,340.0 | 71.0 | 1.3 |
| H1050-M48-.../w | M48 | 94.0 | 34.0 | 66.0 | 58.0 | 6 | 1/2 | 3/8 | 82.0 | - | 93,690.0 | 80.0 | 1.5 |
| H1050-M52-.../w | M52 | 99.0 | 43.0 | 74.0 | 71.0 | 6 | 5/8 | 1/2 | 94.0 | - | 112,635.0 | 121.0 | 2.0 |
| H1050-M56-.../w | M56 | 107.0 | 43.0 | 79.0 | 71.0 | 6 | 5/8 | 1/2 | 100.0 | - | 129,915.0 | 140.0 | 2.4 |
| H1050-M60-.../w | M60 | 113.0 | 56.0 | 87.0 | 84.0 | 8 | 5/8 | 1/2 | 107.0 | - | 148,140.0 | 120.0 | 3.4 |
| H1050-M64-.../w | M64 | 113.0 | 56.0 | 87.0 | 84.0 | 8 | 5/8 | 1/2 | 107.0 | - | 172,080.0 | 139.0 | 3.3 |
| H1050-M72-.../w | M72 | 124.0 | 61.0 | 100.0 | 89.0 | 8 | 5/8 | 1/2 | 120.0 | - | 224,730.0 | 181.0 | 4.2 |
| H1050-M80-?/w | M80 | 132.0 | 61.0 | 103.0 | 89.0 | 10 | 5/8 | 1/2 | 126.0 | - | 284,355.0 | 184.0 | 4.4 |
| H1050-M90-.../w | M90 | 145.0 | 71.0 | 113.0 | 99.0 | 14 | 5/8 | 1/2 | 132.0 | - | 368,775.0 | 170.0 | 6.1 |
| H1050-M100-?/w | M100 | 157.0 | 71.0 | 123.0 | 99.0 | 16 | 5/8 | 1/2 | 144.0 | - | 463,950.0 | 187.0 | 7.0 |
