Perno tensionador mecánico SSJX
Descripción
Pernos de expansión con tuercas tensionadoras. Hechos según las especificaciones y necesidades del usuario.
Aplicación: Reemplazan los pernos de acople por interferencia en máquinas grandes, tales como turbinas. El diseño facilita el montaje y desmontaje.
Ficha Técnica
| Serie imperial | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Denominación | Rosca | Perno | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||||

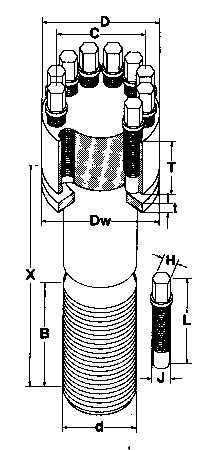

| d | D | T | C | L | X | B | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| SSJX-062-.../w | 5/8 | 24.9 | 16.5 | 17.3 | 76.2 | 33.0 | 16.0 | 4 | 1/4 | 3/16 | 24.9 | 3.3 | 20,400.0 | 14.0 | 0.2 |
| SSJX-075-.../w | 3/4 | 29.7 | 16.5 | 22.1 | 76.2 | 38.1 | 16.0 | 4 | 1/4 | 3/16 | 29.7 | 3.3 | 20,400.0 | 14.0 | 0.3 |
| SSJX-087-.../w | 7/8 | 34.3 | 16.5 | 26.7 | 76.2 | 45.7 | 16.0 | 6 | 1/4 | 3/16 | 34.3 | 3.3 | 30,600.0 | 14.0 | 0.3 |
| SSJX-100-?/w | 1 | 37.8 | 16.5 | 30.2 | 101.6 | 50.8 | 16.0 | 6 | 5/16 | 1/4 | 37.8 | 3.3 | 48,600.0 | 27.0 | 0.6 |
| SSJX-112-?/w | 1.1/8 | 43.2 | 22.9 | 33.8 | 101.6 | 58.4 | 22.4 | 6 | 5/16 | 1/4 | 43.2 | 4.1 | 48,600.0 | 27.0 | 0.8 |
| SSJX-125-?/w | 1.1/4 | 47.0 | 22.9 | 36.8 | 127.0 | 63.5 | 22.4 | 8 | 5/16 | 1/4 | 47.0 | 4.1 | 64,800.0 | 27.0 | 1.1 |
| SSJX-137-?/w | 1.3/8 | 53.3 | 26.7 | 41.4 | 152.4 | 71.1 | 25.4 | 6 | 3/8 | 5/16 | 53.3 | 4.8 | 73,800.0 | 49.0 | 1.6 |
| SSJX-150-?/w | 1.1/2 | 56.4 | 26.7 | 44.5 | 152.4 | 76.2 | 25.4 | 8 | 3/8 | 5/16 | 56.4 | 4.8 | 98,400.0 | 49.0 | 1.9 |
| SSJX-162-?/w | 1.5/8 | 61.7 | 26.7 | 50.3 | 152.4 | 83.8 | 38.1 | 8 | 3/8 | 5/16 | 61.7 | 4.8 | 98,400.0 | 49.0 | 2.2 |
| SSJX-175-?/w | 1.3/4 | 66.0 | 26.7 | 54.1 | 152.4 | 88.9 | 38.1 | 8 | 7/16 | 3/8 | 66.0 | 4.8 | 129,600.0 | 75.0 | 2.6 |
| SSJX-187-?/w | 1.7/8 | 71.1 | 39.4 | 55.9 | 152.4 | 96.5 | 38.1 | 8 | 1/2 | 7/16 | 71.1 | 5.6 | 175,200.0 | 114.0 | 3.4 |
| SSJX-200-.../w | 2 | 75.7 | 39.4 | 60.5 | 203.2 | 101.6 | 50.8 | 8 | 1/2 | 7/16 | 75.7 | 5.6 | 175,200.0 | 114.0 | 4.8 |
| SSJX-225-.../w | 2.1/4 | 86.4 | 39.4 | 71.1 | 203.2 | 114.3 | 50.8 | 8 | 1/2 | 7/16 | 86.4 | 5.6 | 175,200.0 | 114.0 | 6.1 |
| SSJX-250-.../w | 2.1/2 | 96.5 | 50.8 | 77.5 | 203.2 | 127.0 | 50.8 | 8 | 5/8 | 9/16 | 96.5 | 7.1 | 285,600.0 | 233.0 | 7.8 |
| SSJX-275-.../w | 2.3/4 | 105.4 | 50.8 | 86.4 | 254.0 | 139.7 | 63.5 | 8 | 5/8 | 9/16 | 105.4 | 7.1 | 285,600.0 | 233.0 | 11.3 |
| SSJX-300-.../w | 3 | 113.0 | 50.8 | 94.0 | 304.8 | 152.4 | 63.5 | 12 | 5/8 | 9/16 | 113.0 | 7.1 | 428,400.0 | 233.0 | 14.8 |
| SSJX-325-.../w | 3.1/4 | 124.5 | 63.5 | 101.6 | 304.8 | 165.1 | 76.2 | 12 | 5/8 | 9/16 | 124.5 | 7.1 | 428,400.0 | 233.0 | 18.7 |
| SSJX-350-.../w | 3.1/2 | 130.8 | 63.5 | 108.0 | 304.8 | 177.8 | 76.2 | 16 | 5/8 | 9/16 | 130.8 | 7.1 | 571,200.0 | 233.0 | 21.3 |
| SSJX-375-.../w | 3.3/4 | 143.5 | 76.2 | 117.6 | 381.0 | 190.5 | 76.2 | 16 | 5/8 | 9/16 | 143.5 | 9.7 | 571,200.0 | 233.0 | 30.9 |
| SSJX-400-.../w | 4 | 151.6 | 76.2 | 122.4 | 381.0 | 203.2 | 76.2 | 18 | 5/8 | 9/16 | 151.6 | 9.7 | 642,600.0 | 233.0 | 34.8 |
| SSJX-425-.../w | 4.1/4 | 157.0 | 76.2 | 130.3 | 381.0 | 215.9 | 76.2 | 16 | 3/4 | 5/8 | 157.0 | 10.9 | 806,400.0 | 390.0 | 38.8 |
| SSJX-450-.../w | 4.1/2 | 163.8 | 76.2 | 137.2 | 457.2 | 228.6 | 76.2 | 16 | 3/4 | 5/8 | 163.8 | 10.9 | 806,400.0 | 390.0 | 49.2 |
| SSJX-475-.../w | 4.3/4 | 169.7 | 76.2 | 143.0 | 457.2 | 241.3 | 76.2 | 18 | 3/4 | 5/8 | 169.7 | 10.9 | 907,200.0 | 390.0 | 54.5 |
| SSJX-500-.../w | 5 | 176.0 | 76.2 | 149.4 | 508.0 | 254.0 | 76.2 | 20 | 3/4 | 5/8 | 176.0 | 12.7 | 1,100,800.0 | 390.0 | 64.9 |
| SSJX-525-.../w | 5.1/4 | 189.2 | 76.2 | 158.8 | 609.6 | 266.7 | 76.2 | 22 | 3/4 | 5/8 | 189.2 | 12.7 | 1,108,800.0 | 390.0 | 83.6 |
| SSJX-550-.../w | 5.1/2 | 195.6 | 76.2 | 165.1 | 609.6 | 279.4 | 76.2 | 22 | 3/4 | 5/8 | 195.6 | 12.7 | 1,108,800.0 | 390.0 | 91.0 |
| SSJX-575-.../w | 5.3/4 | 201.9 | 76.2 | 171.5 | 609.6 | 292.1 | 76.2 | 24 | 3/4 | 5/8 | 201.9 | 12.7 | 1,209,600.0 | 390.0 | 99.3 |
| SSJX-600-.../w | 6 | 208.3 | 76.2 | 177.8 | 609.6 | 304.8 | 76.2 | 24 | 3/4 | 5/8 | 208.3 | 12.7 | 1,209,600.0 | 390.0 | 107.6 |
| Serie imperial | |||||||||||||||
| Denominación | Rosca | Perno | Pernos secundarios | Arandela | Fuerza de apriete | Torque requerido | Peso | ||||||||
| d | D | T | C | L | X | B | Cant. | J | H | Dw | t | ||||
| - | " | mm | mm | mm | mm | mm | mm | - | " | " | mm | mm | libras | ft*lbs | kg |
| SSJX-M16-.../w | M16 | 25.0 | 17.0 | 17.0 | 76.0 | 32.0 | 16.0 | 6 | 6.0 | 3.0 | 25.0 | 3.2 | 15,795.0 | 3.6 | 0.2 |
| SSJX-M20-.../w | M20 | 31.0 | 17.0 | 23.0 | 76.0 | 40.0 | 16.0 | 10 | 6.0 | 3.0 | 31.0 | 3.2 | 25,110.0 | 3.6 | 0.3 |
| SSJX-M24-.../w | M24 | 35.0 | 17.0 | 28.0 | 102.0 | 48.0 | 16.0 | 12 | 6.0 | 3.0 | 35.0 | 3.2 | 31,590.0 | 3.6 | 0.5 |
| SSJX-M27-.../w | M27 | 41.0 | 23.0 | 32.0 | 102.0 | 54.0 | 20.0 | 8 | 8.0 | 4.0 | 41.0 | 4.1 | 41,340.0 | 9.0 | 0.7 |
| SSJX-M30-.../w | M30 | 45.0 | 23.0 | 35.0 | 127.0 | 60.0 | 20.0 | 10 | 8.0 | 4.0 | 45.0 | 4.1 | 51,675.0 | 9.0 | 1.0 |
| SSJX-M33-.../w | M33 | 50.0 | 23.0 | 38.0 | 152.0 | 66.0 | 20.0 | 12 | 8.0 | 4.0 | 50.0 | 4.1 | 62,010.0 | 9.0 | 1.4 |
| SSJX-M36-.../w | M36 | 55.0 | 27.0 | 43.0 | 152.0 | 72.0 | 25.0 | 10 | 10.0 | 5.0 | 55.0 | 4.8 | 74,100.0 | 18.0 | 1.7 |
| SSJX-M39-.../w | M39 | 59.0 | 27.0 | 47.0 | 152.0 | 78.0 | 25.0 | 12 | 10.0 | 5.0 | 59.0 | 4.8 | 88,920.0 | 18.0 | 2.0 |
| SSJX-M42-.../w | M42 | 63.0 | 27.0 | 50.0 | 152.0 | 84.0 | 25.0 | 12 | 10.0 | 5.0 | 63.0 | 4.8 | 88,920.0 | 18.0 | 2.3 |
| SSJX-M45-.../w | M45 | 69.0 | 33.0 | 54.0 | 152.0 | 90.0 | 30.0 | 12 | 12.0 | 6.0 | 69.0 | 5.6 | 131,040.0 | 32.0 | 2.9 |
| SSJX-M48-.../w | M48 | 71.0 | 38.0 | 57.0 | 203.0 | 96.0 | 35.0 | 12 | 12.0 | 6.0 | 71.0 | 5.6 | 131,040.0 | 32.0 | 4.1 |
| SSJX-M52-.../w | M52 | 76.0 | 38.0 | 61.0 | 203.0 | 104.0 | 35.0 | 12 | 12.0 | 6.0 | 76.0 | 5.6 | 131,040.0 | 32.0 | 4.8 |
| SSJX-M56-.../w | M56 | 84.0 | 38.0 | 70.0 | 203.0 | 112.0 | 35.0 | 12 | 12.0 | 6.0 | 84.0 | 5.6 | 131,040.0 | 32.0 | 5.7 |
| SSJX-M60-.../w | M60 | 88.0 | 38.0 | 74.0 | 203.0 | 120.0 | 35.0 | 14 | 12.0 | 6.0 | 88.0 | 5.6 | 152,918.0 | 32.0 | 6.1 |
| SSJX-M64-.../w | M64 | 97.0 | 51.0 | 78.0 | 254.0 | 128.0 | 50.0 | 12 | 16.0 | 8.0 | 97.0 | 7.0 | 250,380.0 | 75.0 | 9.1 |
| SSJX-M72-.../w | M72 | 108.0 | 51.0 | 89.0 | 254.0 | 144.0 | 50.0 | 14 | 16.0 | 8.0 | 108.0 | 7.0 | 292,110.0 | 75.0 | 11.8 |
| SSJX-M80-?/w | M80 | 117.0 | 51.0 | 98.0 | 305.0 | 160.0 | 50.0 | 16 | 16.0 | 8.0 | 117.0 | 7.0 | 336,960.0 | 75.0 | 16.1 |
| SSJX-M90-.../w | M90 | 134.0 | 76.0 | 110.0 | 305.0 | 180.0 | 70.0 | 14 | 20.0 | 10.0 | 134.0 | 9.0 | 458,640.0 | 149.0 | 23.5 |
| SSJX-M100-?/w | M100 | 144.0 | 76.0 | 121.0 | 381.0 | 200.0 | 70.0 | 14 | 20.0 | 10.0 | 144.0 | 9.0 | 458,640.0 | 149.0 | 33.1 |
| SSJX-M110-?/w | M110 | 154.0 | 76.0 | 131.0 | 457.0 | 220.0 | 70.0 | 16 | 20.0 | 10.0 | 154.0 | 11.0 | 524,160.0 | 149.0 | 45.3 |
| SSJX-M120-?/w | M120 | 164.0 | 76.0 | 141.0 | 457.0 | 240.0 | 70.0 | 18 | 20.0 | 10.0 | 164.0 | 11.0 | 589,680.0 | 149.0 | 53.1 |
| SSJX-M140-?/w | M140 | 184.0 | 76.0 | 161.0 | 610.0 | 280.0 | 70.0 | 20 | 20.0 | 10.0 | 184.0 | 13.0 | 655,200.0 | 149.0 | 89.3 |
| SSJX-M160-?/w | M160 | 204.0 | 76.0 | 181.0 | 610.0 | 320.0 | 70.0 | 22 | 20.0 | 10.0 | 204.0 | 13.0 | 720,720.0 | 149.0 | 115.4 |
