Serie TSW- sin arandela, serie milimétrica: desde M14 hasta M72
Descripción

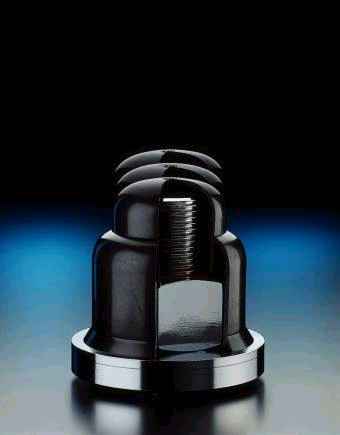

Capuchones para tuercas, contratuercas y/ó pernos (sin su respectiva arandela de seguridad).
Consiste de dos capuchones SW (sin arandela).
Otras dimensiones ver capuchones SW.
Para medidas anormales, consultar en oficina.
ECP: Entre Caras Paralelas.
Ficha Técnica
| Artículo | Altura total máx. G | Altura total capuchón inferior, GU | Altura totalcapuchón superior, GA | Notas |
|---|---|---|---|---|
| ECP 22 mm | M 14(DIN) | 1/2" (UNC) | ||
| TSW 22-1-G 37 | 37,0 | 22,0 | 15,0 | |
| TSW 22-1-G 47 | 47,0 | 22,0 | 25,0 | |
| TSW 22-1-G 77 | 77,0 | 62,0 | 15,0 | |
| TSW 22-1-G 87 | 87,0 | 62,0 | 25,0 | |
| ECP 24 mm | M 16(DIN) | 9/16" (UNC) | ||
| TSW 24-1-G 41 | 41,0 | 24,0 | 17,0 | |
| TSW 24-1-G 62 | 62,0 | 24,0 | 38,0 | |
| TSW 24-1-G 66 | 66,0 | 49,0 | 17,0 | |
| TSW 24-1-G 87 | 87,0 | 49,0 | 38,0 | |
| ECP 27 mm | M 18 (DIN) | 5/8" (UNC) | ||
| TSW 27-1-G 42 | 42,0 | 26,0 | 16,0 | |
| TSW 27-1-G 57 | 57,0 | 26,0 | 31,0 | |
| TSW 27-1-G 82 | 82,0 | 66,0 | 16,0 | |
| TSW 27-1-G 97 | 97,0 | 66,0 | 31,0 | |
| ECP 30 mm | M 20 (DIN) | 3/4" (BSW) | ||
| TSW 30-1-G 67 | 67,0 | 32,0 | 35,0 | |
| TSW 30-1-G 92 | 92,0 | 32,0 | 60,0 | |
| ECP 32 mm | M 22 (DIN) | 3/4" (UNC) | ||
| TSW 32-1-G 70 | 70,0 | 35,0 | 35,0 | |
| TSW 32-1-G 95 | 95,0 | 35,0 | 60,0 | |
| TSW 32-1-G 103 | 103,0 | 68,0 | 35,0 | |
| TSW 32-1-G 128 | 128,0 | 68,0 | 60,0 | |
| ECP 36 mm | M 24 (DIN) | 7/8" (UNC) | ||
| TSW 36-1-G 69 | 69,0 | 40,0 | 29,0 | |
| TSW 36-1-G 88 | 88,0 | 40,0 | 48,0 | |
| TSW 36-1-G 98 | 98,0 | 69,0 | 29,0 | |
| TSW 36-1-G 117 | 117,0 | 69,0 | 29,0 | |
| ECP 41 mm | M 27 (DIN) | 1" (UNC) | ||
| TSW 41-1-G 69 | 69,0 | 43,0 | 26,0 | |
| TSW 41-1-G 98 | 98,0 | 72,0 | 26,0 | |
| TSW 41-1-G 107 | 107,0 | 43,0 | 64,0 | |
| TSW 41-1-G 136 | 136,0 | 72,0 | 64,0 | |
| ECP 46 mm | M 30 (DIN) | 1.1/8" (UNC) | ||
| TSW 46-1-G 83 | 83,0 | 46,0 | 37,0 | |
| TSW 46-1-G 92 | 92,0 | 46,0 | 46,0 | |
| TSW 46-1-G 112 | 112,0 | 75,0 | 37,0 | |
| TSW 46-1-G 121 | 121,0 | 75,0 | 46,0 | |
| ECP 50 mm | M 33 (DIN) | 1.1/4" (UNC) | ||
| TSW 50-1-G 83 | 83,0 | 48,0 | 35,0 | |
| TSW 50-1-G 111 | 111,0 | 76,0 | 35,0 | |
| TSW 50-1-G 115 | 115,0 | 48,0 | 68,0 | |
| TSW 50-1-G 144 | 144,0 | 76,0 | 68,0 | |
| ECP 55 mm | M 36 (DIN) | 1.3/8" (UNC) | ||
| TSW 55-1-G 92 | 92,0 | 52,0 | 40,0 | |
| TSW 55-1-G 120 | 120,0 | 80,0 | 40,0 | |
| TSW 55-1-G 121 | 121,0 | 52,0 | 69,0 | |
| TSW 55-1-G 149 | 149,0 | 80,0 | 69,0 | |
| ECP 60 mm | M 39 (DIN) | 1.5/8" (BSW) | 1.1/2" (UNC) | |
| TSW 60-1-G 97 | 97,0 | 54,0 | 43,0 | |
| TSW 60-1-G 125 | 125,0 | 82,0 | 43,0 | |
| TSW 60-1-G 126 | 126,0 | 54,0 | 72,0 | |
| TSW 60-1-G 154 | 154,0 | 82,0 | 72,0 | |
| ECP 65 mm | M 42 (DIN) | 1.3/4" (BSW) | 1.5/8" (UNC) | |
| TSW 65-1-G 100 | 100,0 | 57,0 | 43,0 | |
| TSW 65-1-G 128 | 128,0 | 57,0 | 72,0 | |
| TSW 65-1-G 129 | 129,0 | 86,0 | 43,0 | |
| TSW 65-1-G 158 | 158,0 | 86,0 | 72,0 | |
| ECP 70 mm | M 45 (DIN) | 2 " (BSW) | 1.3/4" (UNC) | |
| TSW 70-1-G 105 | 105,0 | 59,0 | 46,0 | |
| TSW 70-1-G 133 | 133,0 | 59,0 | 75,0 | |
| TSW 70-1-G 134 | 134,0 | 88,0 | 46,0 | |
| TSW 70-1-G 163 | 163,0 | 88,0 | 75,0 | |
| ECP 75 mm | M 48 (DIN) | 1.7/8" (UNC) | ||
| TSW 75-1-G 108 | 108,0 | 62,0 | 46,0 | |
| TSW 75-1-G 137 | 137,0 | 62,0 | 75,0 | |
| TSW 75-1-G 138 | 138,0 | 91,0 | 46,0 | |
| TSW 75-1-G 166 | 166,0 | 91,0 | 75,0 | |
| ECP 80 mm | M 52 (DIN) | 2.1/4 " (BSW) | 2" (UNC) | |
| TSW 80-1-G 114 | 114,0 | 66,0 | 48,0 | |
| TSW 80-1-G 142 | 142,0 | 66,0 | 76,0 | |
| ECP 85 mm | M 56 (DIN) | |||
| TSW 85-1-G 122 | 122,0 | 70,0 | 52,0 | |
| TSW 85-1-G 150 | 150,0 | 70,0 | 80,0 | |
| ECP 90 mm | M 60 (DIN) | 2.1/2" (BSW) | 2.1/4" (UNC) | |
| TSW 90-1-G 128 | 128,0 | 74,0 | 54,0 | |
| TSW 90-1-G 156 | 156,0 | 74,0 | 82,0 | |
| ECP 95 mm | M 64 (DIN) | |||
| TSW 95-1-G 140 | 140,0 | 83,0 | 57,0 | |
| TSW 95-1-G 169 | 169,0 | 83,0 | 86,0 | |
| ECP 100 mm | M 68 (DIN) | 2.3/4" (BSW) | 2.1/2" (UNC) | |
| TSW 100-1-G 144 | 144,0 | 85,0 | 59,0 | |
| TSW 100-1-G 173 | 173,0 | 85,0 | 88,0 | |
| ECP 105 mm | M 72 (DIN) | 3" (BSW) | ||
| TSW 105-1-G 147 | 147,0 | 85,0 | 62,0 | |
| TSW 105-1-G 176 | 176,0 | 85,0 | 91,0 | |
| TSW 105-1-G 204 | 204,0 | 142,0 | 62,0 |
