Serie TSW- con arandela, serie milimétrica: desde M14 hasta M56
Descripción

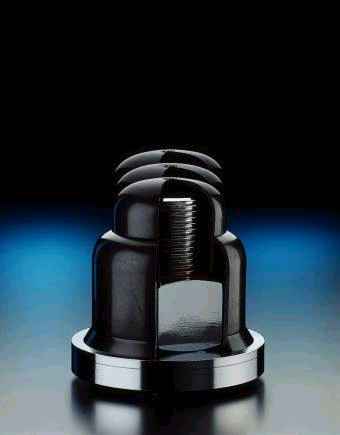

Capuchones para tuercas, contratuercas y/ó pernos (con su respectiva arandela de seguridad).
Consiste de dos capuchones SW (sin arandela).
Otras dimensiones ver capuchones SW.
Para medidas anormales, consultar en oficina.
ECP: Entre Caras Paralelas.
Ficha Técnica
| Artículo | Altura total máx. G | Altura total capuchón inferior, GU | Altura total capuchón superior, GA | Notas |
|---|---|---|---|---|
| ECP 22 mm | M 14 (DIN) | 1/2" (UNC) | ||
| TSW 22-2-G 40 | 40,0 | 25,0 | 15,0 | |
| TSW 22-2-G 50 | 50,0 | 25,0 | 25,0 | |
| ECP 24 mm | M 16 (DIN) | 9/16" (UNC) | ||
| TSW 24-2-G 44 | 44,0 | 27,0 | 17,0 | |
| TSW 24-2-G 65 | 65,0 | 27,0 | 38,0 | |
| TSW 24-2-G 69 | 69,0 | 52,0 | 17,0 | |
| TSW 24-2-G 90 | 90,0 | 52,0 | 38,0 | |
| ECP 27 mm | M 18 (DIN) | 5/8" (UNC) | ||
| TSW 27-2-G 45 | 45,0 | 29,0 | 16,0 | |
| TSW 27-2-G 60 | 60,0 | 29,0 | 31,0 | |
| TSW 27-2-G 85 | 85,0 | 69,0 | 16,0 | |
| TSW 27-2-G 100 | 100,0 | 69,0 | 31,0 | |
| ECP 30 mm | M 20 (DIN) | 3/4" ((BSW)) | ||
| TSW 30-2-G 70 | 70,0 | 35,0 | 35,0 | |
| TSW 30-2-G 95 | 95,0 | 35,0 | 60,0 | |
| ECP 32 mm | M 22 (DIN) | 3/4" (UNC) | ||
| TSW 32-2-G 73 | 73,0 | 35,0 | 35,0 | |
| TSW 32-2-G 98 | 98,0 | 38,0 | 60,0 | |
| ECP 36 mm | M 24 (DIN) | 7/8" (UNC) | ||
| TSW 36-2-G 73 | 73,0 | 44,0 | 29,0 | |
| TSW 36-2-G 92 | 92,0 | 44,0 | 48,0 | |
| TSW 36-2-G 102 | 102, | 73,0 | 29,0 | |
| TSW 36-2-G 121 | 121,0 | 73,0 | 48,0 | |
| ECP 41 mm | M 27 (DIN) | 1" (UNC) | ||
| TSW 41-2-G 68 | 68,0 | 42,0 | 26,0 | |
| TSW 41-2-G 102 | 102,0 | 76,0 | 26,0 | |
| TSW 41-2-G 106 | 106,0 | 42,0 | 64,0 | |
| TSW 41-2-G 140 | 140,0 | 76,0 | 64,0 | |
| ECP 46 mm | M 30 (DIN) | 1.1/8" (UNC) | ||
| TSW 46-2-G 87 | 87,0 | 50,0 | 37,0 | |
| TSW 46-2-G 96 | 96,0 | 50,0 | 46,0 | |
| TSW 46-2-G 115 | 115,0 | 78,0 | 37,0 | |
| TSW 46-2-G 124 | 124,0 | 78,0 | 46,0 | |
| ECP 50 mm | M 33 (DIN) | 1.1/4" (UNC) | ||
| TSW 50-2-G 88 | 88,0 | 53,0 | 35,0 | |
| TSW 50-2-G 116 | 116,0 | 81,0 | 35,0 | |
| TSW 50-2-G 121 | 121,0 | 53,0 | 68,0 | |
| TSW 50-2-G 149 | 149,0 | 81,0 | 68,0 | |
| ECP 55 mm | M 36 (DIN) | 1.3/8" (UNC) | ||
| TSW 55-2-G 97 | 97,0 | 57,0 | 40,0 | |
| TSW 55-2-G 125 | 125,0 | 85,0 | 40,0 | |
| TSW 55-2-G 126 | 126,0 | 57,0 | 69,0 | |
| TSW 55-2-G 154 | 154,0 | 85,0 | 69,0 | |
| ECP 60 mm | M 39 (DIN) | 1.5/8" (BSW) | 1.1/2" (UNC) | |
| TSW 60-2-G 102 | 102,0 | 59,0 | 43,0 | |
| TSW 60-2-G 130 | 130,0 | 59,0 | 72,0 | |
| TSW 60-2-G 131 | 131,0 | 88,0 | 43,0 | |
| TSW 60-2-G 160 | 160,0 | 88,0 | 72,0 | |
| ECP 65 mm | M 42 (DIN) | 1.3/4" (BSW) | 1.5/8" (UNC) | |
| TSW 65-2-G 107 | 107,0 | 64,0 | 43,0 | |
| TSW 65-2-G 135 | 135,0 | 64,0 | 72,0 | |
| TSW 65-2-G 136 | 136,0 | 93,0 | 43,0 | |
| TSW 65-2-G 165 | 165,0 | 93,0 | 72,0 | |
| ECP 75 mm | M 48 (DIN) | 1.7/8" (UNC) | ||
| TSW 75-2-G 116 | 116,0 | 70,0 | 46,0 | |
| TSW 75-2-G 143 | 143,0 | 97,0 | 46,0 | |
| TSW 75-2-G 145 | 145,0 | 70,0 | 75,0 | |
| TSW 75-2-G 172 | 172,0 | 97,0 | 75,0 | |
| ECP 80 mm | M 52 (DIN) | 2.1/4" (BSW) | ||
| TSW 80-2-G 122 | 122,0 | 74,0 | 48,0 | |
| TSW 80-2-G 150 | 150,0 | 74,0 | 76,0 | |
| ECP 85 mm | M 56 (DIN) | |||
| TSW 85-2-G130 | 130,0 | 78,0 | 52,0 | |
| TSW 85-2-G 158 | 158,0 | 78,0 | 80,0 |
