Serie SW- sin arandela, serie imperial: desde 1/4" hasta 3.1/2"
Descripción
Capuchones para tuercas y/ó pernos (sin su respectiva arandela de seguridad).
Para medidas anormales, consultar en oficina.
ECP: Entre Caras Paralelas
Ficha Técnica

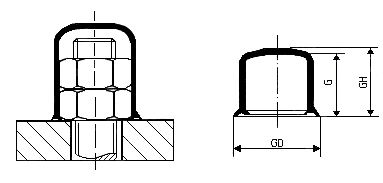

| Artículo | Altura interior total, G | Altura total, GH | Diámetro total, GD | Diámetro, D | Altura, S |
|---|---|---|---|---|---|
| ECP 6 mm | M 3,5 (DIN) | ||||
| SW 6-2-G 4 | 4,0 | 5,2 | 9,8 | 8,5 | 0,6 |
| ECP 7 mm | M 4 (DIN) | ||||
| SW 7-2-G 5 | 5,9 | 5,9 | 10,8 | 9,7 | 0,8 |
| SW 7/6 -2-G 5 | 4,7 | 5,9 | 10,8 | 9,7 | 0,8 |
| SW 7-2-G 8 | 7,8 | 9,0 | 10,9 | 9,6 | 0,8 |
| SW 7-2-G 10 | 9,7 | 10,9 | 10,8 | 9,4 | 0,8 |
| ECP 8 mm | M 5 (DIN) | ||||
| SW 8-2-G 6 | 5,7 | 6,9 | 11,8 | 10,9 | 1,0 |
| SW 8-2-G 9 | 9,1 | 10,6 | 12,4 | 10,9 | 1,0 |
| SW 8-2-G 11 | 11,1 | 12,2 | 12,4 | 10,9 | 1,0 |
| SW 8-2-G 20 | 11,1 | 12,2 | 12,4 | 10,9 | 1,0 |
| ECP 10 mm | M 6 (DIN) | ||||
| SW 10-2-G 7 | 6,7 | 8,2 | 14,8 | 13,7 | 1,6 |
| SW 10-2-G 13 | 13,0 | 14,1 | 14,6 | 13,7 | 1,6 |
| SW 10-2-G 18 | 17,8 | 19,1 | 14,6 | 13,7 | 1,6 |
| ECP 11 mm | 1/4" (BSW) | ||||
| SW 11-2-G 13 | 13,0 | 14,7 | 16,8 | 14,7 | 1,4 |
| ECP 12 mm | M 7 (DIN) | ||||
| SW 12-2-G 14 | 14,4 | 15,7 | 17,3 | 15,8 | 2,2 |
| ECP 13 mm | M 8 (DIN) | 5/16 " (BSW) | 1/4" (UNC) | ||
| SW 13-2-G 10 | 9,9 | 11,4 | 18,2 | 17,0 | 1,7 |
| SW 13-2-G 14 | 14,0 | 15,5 | 18,5 | 17,1 | 1,6 |
| SW 13-2-G 19 | 19,0 | 20,0 | 18,5 | 16,8 | 1,9 |
| SW 13-2-G 29 | 28,8 | 30,4 | 18,8 | 17,4 | 1,6 |
| ECP 14 mm | M 8 (DIN) | 5/16" (UNC) | |||
| SW 14-2-G 14 | 14,3 | 15,5 | 19,9 | 18,4 | 2,0 |
| SW 14-2-G 19 | 18,9 | 20,3 | 19,6 | 18,3 | 1,8 |
| ECP 15 mm | 3/8 " (BSW) | ||||
| SW 15-2-G 18 | 17,9 | 19,3 | 21,1 | 20,0 | 1,8 |
| ECP 17 mm | M 10 (DIN) | 3/8 " (UNC) | |||
| SW 17-2-G 12 | 12,1 | 13,7 | 23,8 | 22,2 | 2,0 |
| SW 17-2-G 16 | 15,9 | 16,5 | 23,6 | 22,2 | 2,0 |
| SW 17-2-G 17 | 17,0 | 19,0 | 23,8 | 21,9 | 2,0 |
| SW 17-2-G 22 | 21,9 | 23,5 | 23,7 | 21,9 | 2,0 |
| SW 17-2-G 26 | 26,0 | 28,0 | 25,0 | 23,5 | 2,0 |
| ECP 19 mm | M 12 (DIN) | 7/16 " (UNC) | |||
| SW 19-2-G 15 | 15,5 | 16,8 | 26,1 | 24,7 | 2,5 |
| SW 19-2-G 20 | 19,8 | 21,5 | 26,1 | 24,7 | 2,5 |
| SW 19-2-G 25 | 25,6 | 27,4 | 26,5 | 25,0 | 2,5 |
| SW 19-2-G 40 | 41,1 | 42,6 | 26,7 | 24,6 | 2,5 |
| ECP 22 mm | M 14 (DIN) | 1/2 " (UNC) | |||
| SW 22-2-G 22 | 21,8 | 24,0 | 30,2 | 28,4 | 2,5 |
| SW 22-2-G 27 | 26,7 | 29,0 | 30,0 | 29,0 | 2,5 |
| ECP 24 mm | M 16 (DIN) | 9/16 " (UNC) | |||
| SW 24-2-G 17 | 16,9 | 20,0 | 33,0 | 32,0 | 3,0 |
| SW 24-2-G 19 | 18,4 | 21,0 | 33,0 | 32,0 | 3,0 |
| SW 24-2-G 24 | 24,2 | 27,0 | 33,0 | 31,0 | 3,0 |
| SW 24-2-G 29 | 28,6 | 32,0 | 33,0 | 31,0 | 3,0 |
| SW 24-2-G 34 | 33,5 | 36,0 | 33,0 | 31,0 | 3,0 |
| SW 24-2-G 44 | 43,1 | 45,0 | 34,0 | 32,0 | 3,0 |
| SW 24-2-G 54 | 52,3 | 55,0 | 33,0 | 31,0 | 3,0 |
| SW 24-2-G 69 | 67,2 | 70,0 | 34,0 | 33,0 | 3,0 |
| ECP 27 mm | M 18 (DIN) | 5/8 " (UNC) | |||
| SW 27-2-G 26 | 26,3 | 28,0 | 38,0 | 35,0 | 3,0 |
| SW 27-2-G 31 | 30,2 | 33,0 | 37,0 | 35,0 | 3,0 |
| SW 27-2-G 40 | 40,1 | 43,0 | 38,0 | 36,0 | 3,0 |
| SW 27-2-G 51 | 47,8 | 51,0 | 38,0 | 35,0 | 3,0 |
| SW 27-2-G 71 | 69,0 | 73,0 | 38,0 | 36,0 | 3,0 |
| ECP 30 mm | M 20 (DIN) | 3/4 " (BSW) | |||
| SW 30-2-G 25 | 25,2 | 29,0 | 41,0 | 40,0 | 3,0 |
| SW 30-2-G 30 | 30,0 | 32,0 | 41,0 | 40,0 | 3,0 |
| SW 30-2-G 37 | 34,9 | 39,0 | 41,0 | 39,0 | 3,0 |
| SW 30-2-G 40 | 39,4 | 43,0 | 41,0 | 40,0 | 3,0 |
| SW 30-2-G 52 | 50,4 | 54,0 | 41,0 | 40,0 | 3,0 |
| SW 30-2-G 82 | 82,0 | 84,0 | 42,0 | 40,0 | 3,0 |
| ECP 32 mm | M 22 (DIN) | 3/4 " (UNC) | |||
| SW 32-2-G 30 | 29,2 | 32,0 | 44,0 | 42,0 | 3,0 |
| SW 32-2-G 40 | 38,4 | 42,0 | 44,0 | 42,0 | 3,0 |
| ECP 36 mm | M 24 (DIN) | 7/8 " (UNC) | |||
| SW 36-2-G 32 | 30,9 | 34,0 | 49,0 | 47,0 | 4,0 |
| SW 36-2-G 38 | 37,3 | 39,2 | 49,0 | 47,0 | 4,0 |
| SW 36-2-G 42 | 40,9 | 44,0 | 48,0 | 47,0 | 4,0 |
| SW 36-2-G 47 | 45,6 | 49,0 | 48,0 | 47,0 | 4,0 |
| SW 36-2-G 56 | 56,0 | 59,0 | 49,0 | 47,0 | 4,0 |
| SW 36-2-G 77 | 75,3 | 79,0 | 48,0 | 47,0 | 4,0 |
| ECP 41 mm | M 27 (DIN) | 1 " (UNC) | |||
| SW 41-2-G 35 | 39,7 | 41,0 | 62,0 | 59,0 | 4,0 |
| SW 41-2-G 45 | 47,7 | 50,0 | 55,0 | 53,0 | 4,0 |
| SW 41-2-G 50 | 50,0 | 53,0 | 55,0 | 55,0 | 4,0 |
| SW 41-2-G 80 | 88,0 | 92,0 | 55,0 | 53,0 | 4,0 |
| ECP 46 mm | M 30 (DIN) | 1.1/8 " (UNC) | |||
| SW 46-2-G 38 | 38,0 | 40,0 | 61,0 | 59,0 | 4,0 |
| SW 46-2-G 53 | 52,6 | 55,0 | 63,0 | 60,0 | 4,0 |
| SW 46-2-G 83 | 81,7 | 84,0 | 61,0 | 60,0 | 4,0 |
| ECP 50 mm | M 33 (DIN) | 1.1/4 " (UNC) | |||
| SW 50-2-G 41 | 39,9 | 43,0 | 66,0 | 64,0 | 5,0 |
| SW 50-2-G 56 | 57,9 | 61,0 | 67,0 | 64,0 | 5,0 |
| SW 50-2-G 86 | 87,0 | 90,0 | 66,0 | 63,0 | 5,0 |
| ECP 55 mm | M 36 (DIN) | 1.3/8 " (UNC) | |||
| SW 55-2-G 60 | 61,8 | 65,0 | 72,0 | 71,0 | 5,0 |
| SW 55-2-G 90 | 89,0 | 92,0 | 72,0 | 70,0 | 5,0 |
| ECP 60 mm | M 39 (DIN) | 1.5/8 " (BSW) | 1.1/2 " (UNC) | ||
| SW 60-2-G 63 | 63,7 | 67,0 | 79,0 | 76,0 | 6,0 |
| SW 60-2-G 93 | 101,4 | 106,0 | 80,0 | 76,0 | 6,0 |
| ECP 65 mm | M 42 (DIN) | 1.3/4 " (BSW) | 1.5/8 " (UNC) | ||
| SW 65-2-G 68 | 65,3 | 70,0 | 85,0 | 83,0 | 7,0 |
| SW 65-2-G 98 | 95,2 | 98,0 | 85,0 | 83,0 | 7,0 |
| SW 65-2-G 130 | 131,8 | 134,8 | 87,7 | 83,7 | 7,0 |
| ECP 70 mm | M 45 (DIN) | 2 " (BSW) | 1.3/4 " (UNC) | ||
| SW 70-2-G 100 | 100,0 | 102,0 | 91,0 | 88,0 | 7,0 |
| ECP 75 mm | M 48 (DIN) | 1.7/8 " (UNC) | |||
| SW 75-2-G 74 | 73,8 | 76,0 | 97,0 | 94,0 | 8,0 |
| SW 75-2-G 103 | 103,4 | 110,0 | 102,0 | 98,0 | 8,0 |
| ECP 80 mm | M 52 (DIN) | 2.1/4 " (BSW) | 2 " (UNC) | ||
| SW 80-2-G 78 | 77,6 | 82,0 | 107,0 | 104,0 | 8,0 |
| SW 80-2-G 139 | 136,0 | 141,0 | 109,0 | 107,0 | 8,0 |
| ECP 85 mm | M 56 (DIN) | ||||
| SW 85-2-G 83 | 83,0 | 86,0 | 109,0 | 107,0 | 9,0 |
| ECP 90 mm | M 60 (DIN) | 2.1/2 " (BSW) | 2.1/4 " (UNC) | ||
| SW 90-2-G 83 | 81,0 | 85,0 | 118,8 | 112,5 | 9,2 |
| ECP 95 mm | M 64 (DIN) | ||||
| SW 95-2-G 140 | 140,0 | 145,0 | 122,0 | 117,0 | 902 |
