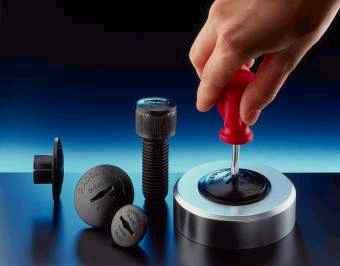

Capuchones protectores, serie ISK
Descripción
Capuchones para pernos Allen.
Para medidas anormales, consultar en oficina.
ECP: Entre Caras Paralelas.
Ficha Técnica
| Para pernos con cabeza Allen (Sólo cabeza) | |||||
|---|---|---|---|---|---|
| Artículo | Rosca | Profundidad T | Altura H (Capuchón) | Diámetro total D | Notas |
| ISK 6 -1-T 4 /D 13 | M 8 | 4,0 | 2,0 | 13,0 | |
| ISK 8 -1-T 5 /D 16 | M 10 | 5,0 | 2,0 | 16,0 | |
| ISK 10 -1-T 6 /D 18 | M 12 | 6,0 | 2,5 | 18,0 | |
| ISK 12 -1-T 7 /D 21 | M 14 | 7,0 | 3,0 | 21,0 | |
| ISK 14 -1-T 8 /D 24 | M 16 | 8,0 | 3,0 | 24,0 | |
| ISK 17 -1-T 10 /D 30 | M 20 | 10,0 | 4,0 | 30,0 | |
| ISK 19 -1-T 12 /D 36 | M 24 | 12,0 | 4,5 | 36,0 | |
| ISK 19 -1-T 12 /D 40 | M 27 | 12,0 | 4,5 | 40,0 | |
| ISK 22 -1-T 15 /D 45 | M 30 | 15,0 | 6,0 | 45,0 | |
| ISK 32 -1-T 24 /D 63 | M 42 | 24,0 | 7,5 | 63,0 | |
| Para pernos con cabeza Allen en agujeros avellanados (Cabeza y agujero) | |||||
| Artículo | Rosca | Profundidad T | Altura H (Capuchón) | Diámetro total D | Notas |
| ISK 6 -2-T 4 /D 18 | M 88 | 4,0 | 2,0 | 18,0 | |
| ISK 8 -2-T 5 /D 20 | M 10 | 5,0 | 2,0 | 20,0 | |
| ISK 10 -2-T 6 /D 24 | M 12 | 6,0 | 2,5 | 24,0 | |
| ISK 12 -2-T 7 /D 26 | M 14 | 7,0 | 3,0 | 26,0 | |
| ISK 14 -2-T 8 /D 30 | M 16 | 8,0 | 3,0 | 30,0 | |
| ISK 17 -2-T 10 /D 36 | M 20 | 10,0 | 4,0 | 36,0 | |
| ISK 19 -2-T 12 /D 43 | M 24 | 12,0 | 4,5 | 43,0 | |
| ISK 19 -2-T 12 /D 46 | M 27 | 12,0 | 4,5 | 46,0 | |
| ISK 22 -2-T 15 /D 53 | M 30 | 15,0 | 6,0 | 53,0 | |
| ISK 32 -2-T 24 /D 71 | M 42 | 24,0 | 7,5 | 71,0 | |
